Indoor LED screen

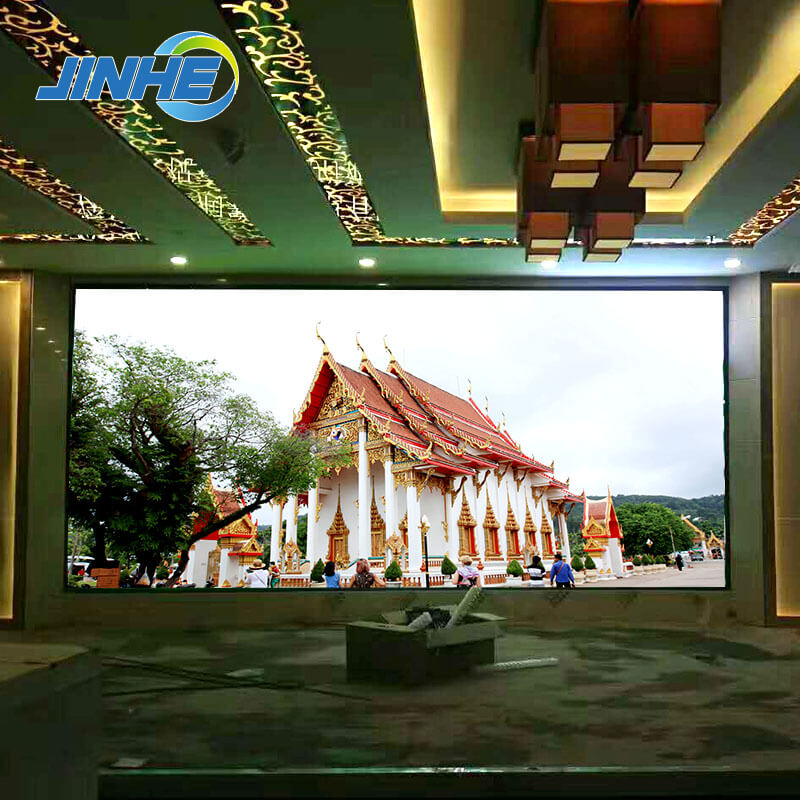

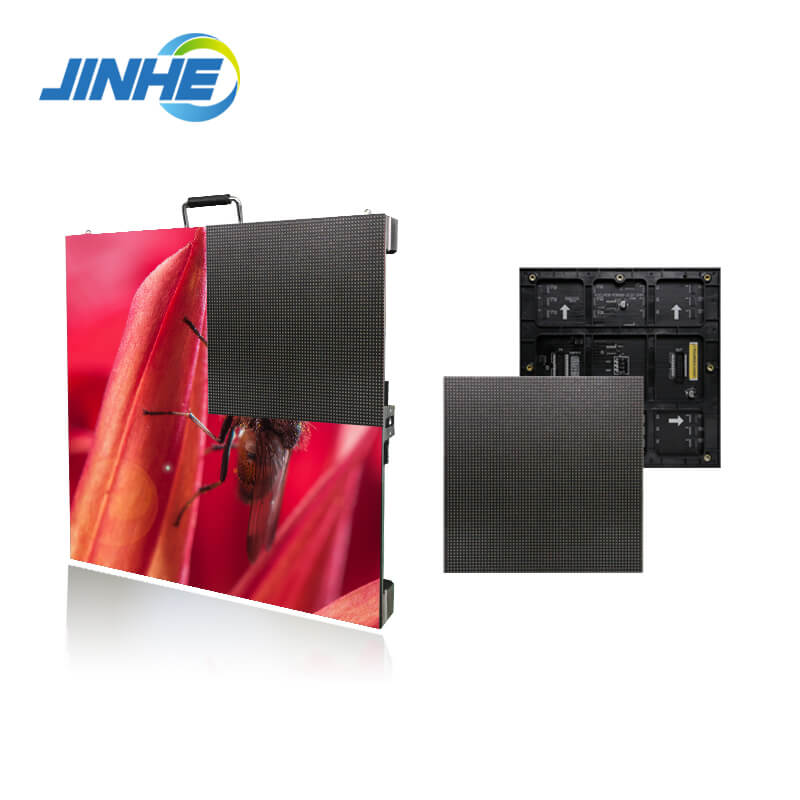

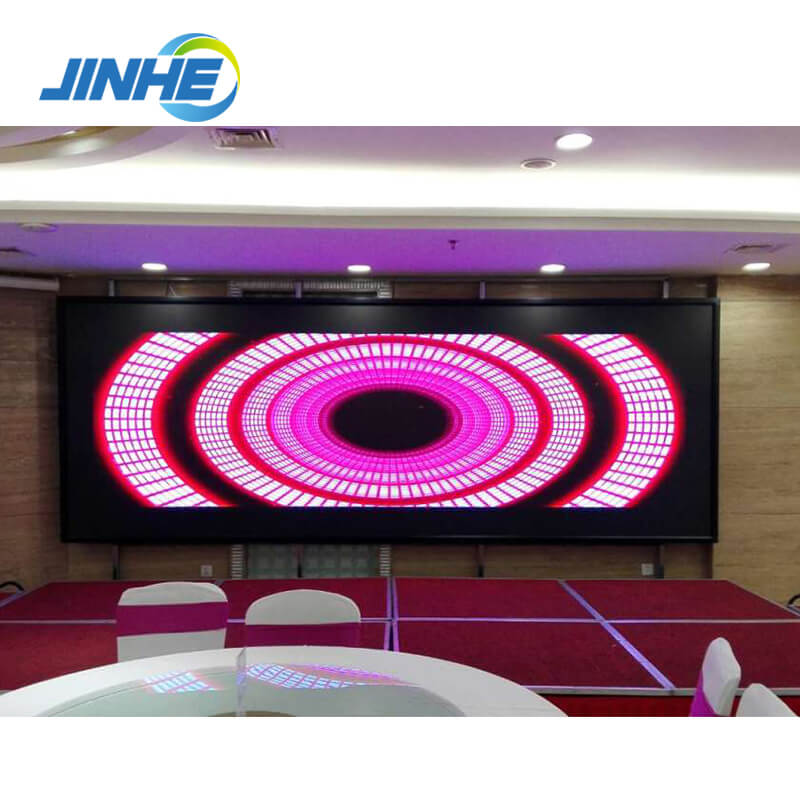

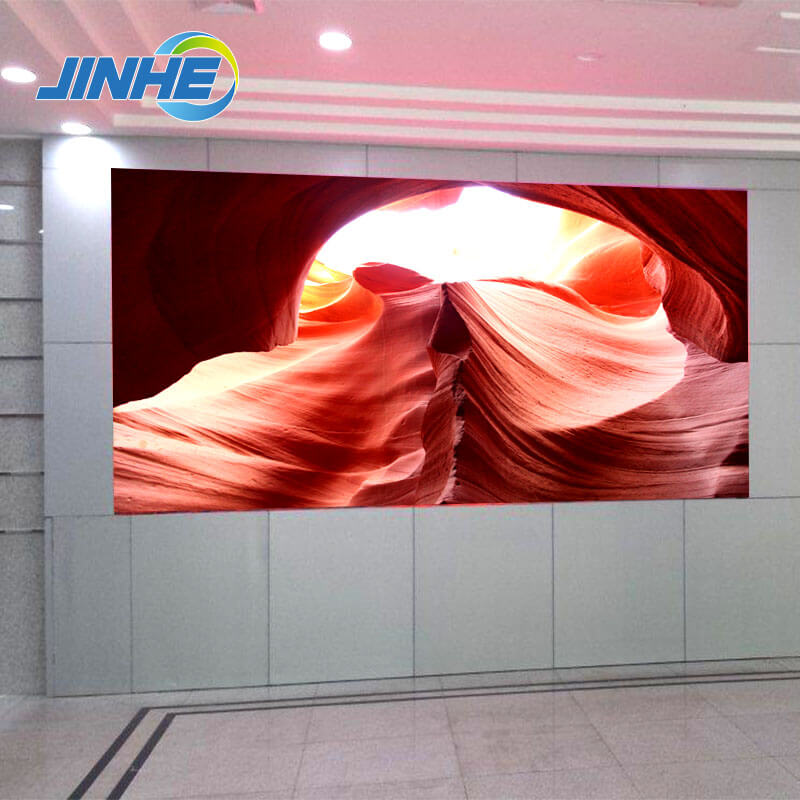

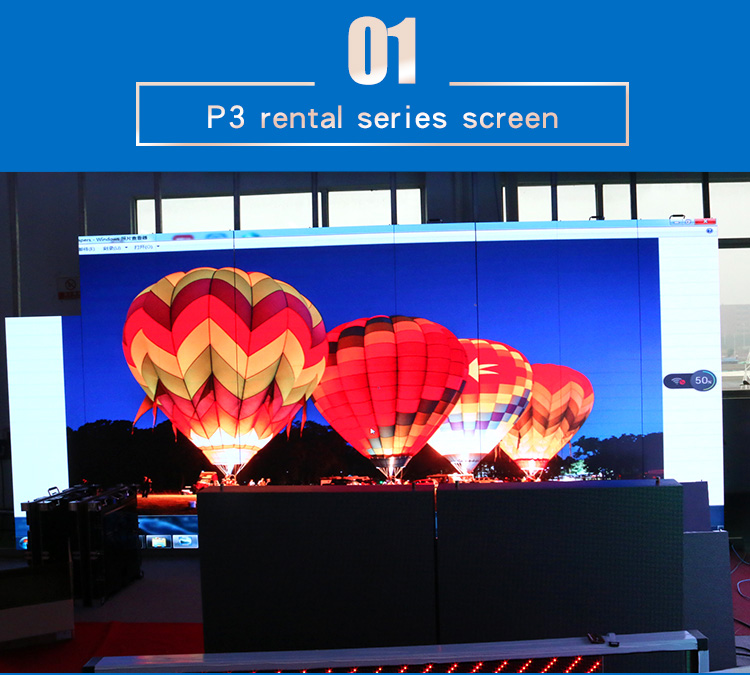

Indoor LED screen P3

  • The product name：Indoor LED screen P3
  • QQ：2776440484
  • Telephone: 18923801063
  • Email: Jude@jhledcn.com
  • Time: 2022-11-09 16:00:43
  • Culture


Specification

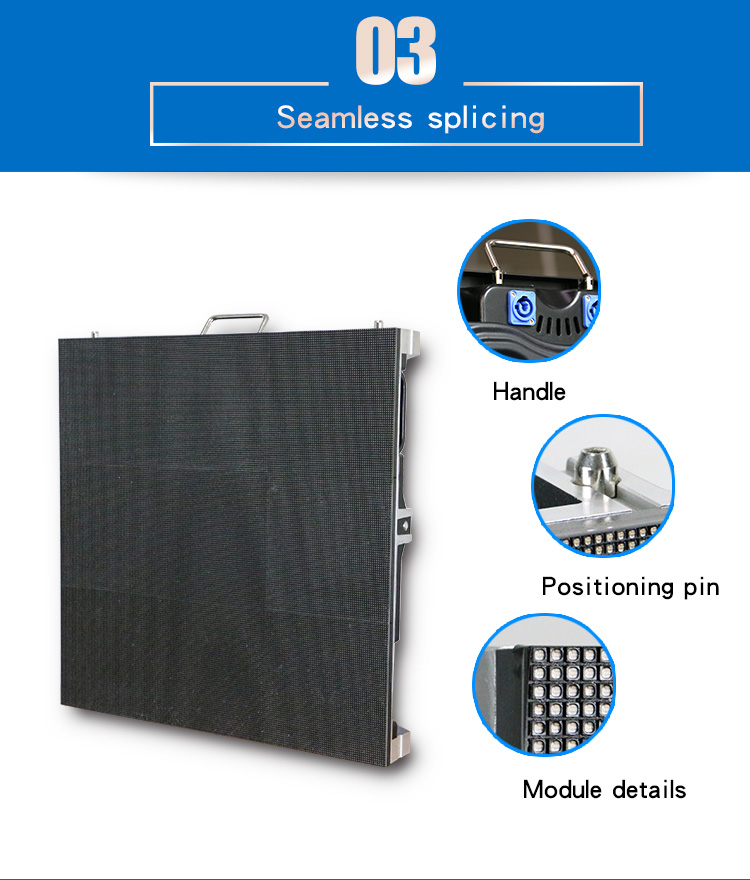

Module size
(W)192mm*192mm(H)
Pixel pitch
3mm
Pixel Density
11111/ M2
Pixel configuration
1R1G1B
LED specification
SMD1921f
Pixel resolution
(W)64*64(H)

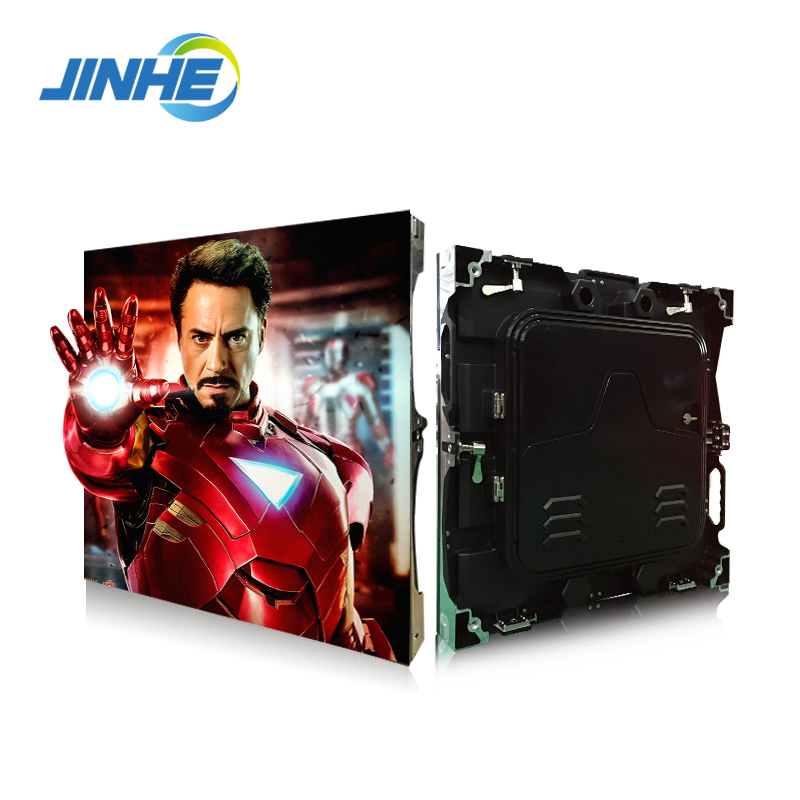

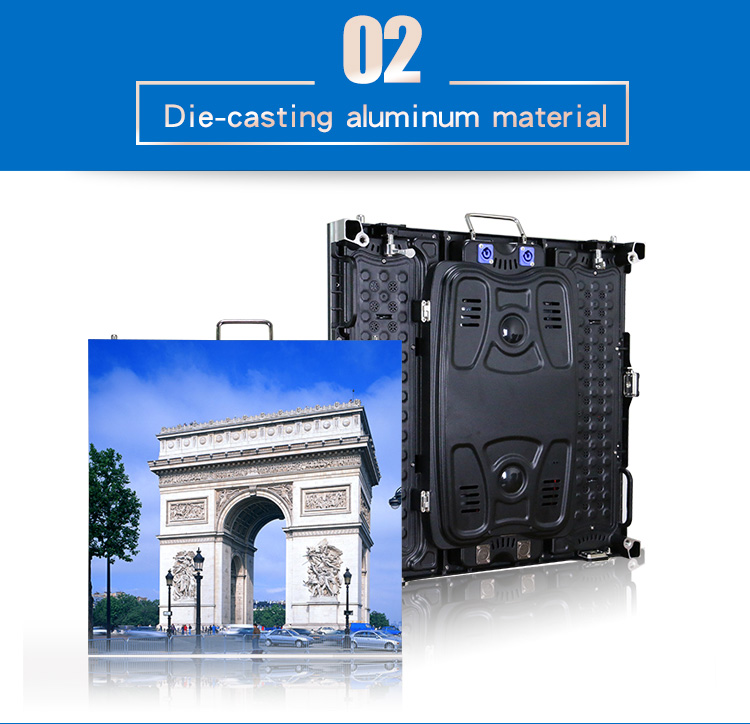

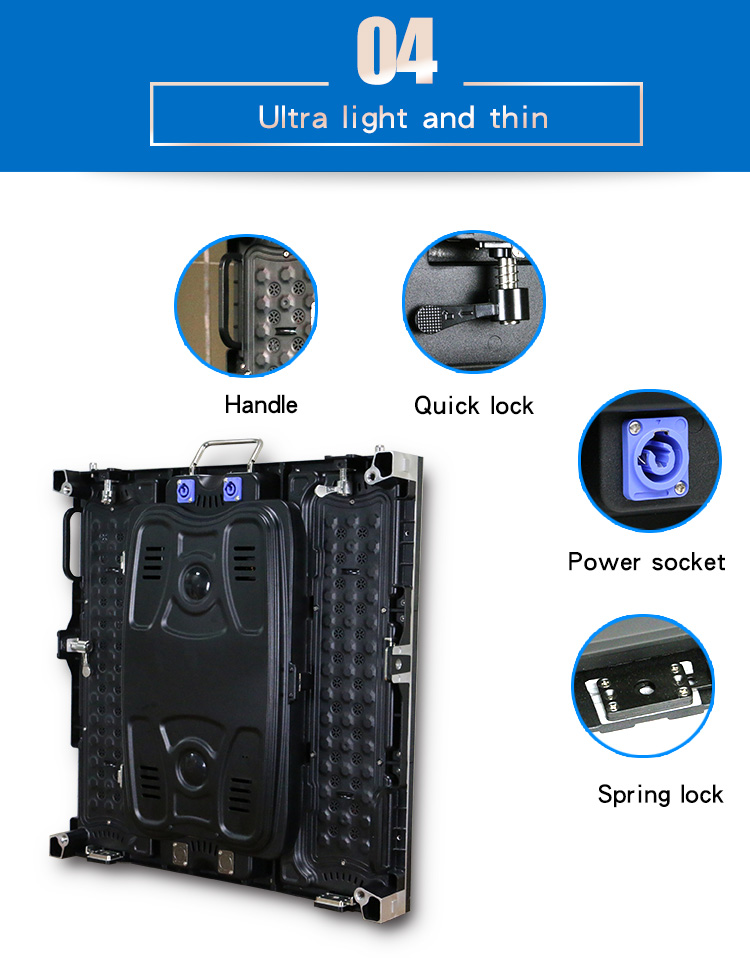

Cabinet size
(W)576mm*576mm(H)
Humidity
10%-95%RH
Best viewing angle
Horizontal >170 Vertical>120
Best viewing distance
5-30M
Working temperature
-80
Panel power supply
5V40A
Screen power supply
220VAC/50HZ+_10%
Max power
600W/2
Average power
600W/2
Driving device
5024/16206Constant current drive
Drive type
1/16Scanning
Refresh frequency
480-1200HZ/S
Display color
4096*4096*4096
Brightness
600cd/sqm
Life span
100000Hours
