Model NO.
P5,P8,P10
Quantity:

Features and advantages of magnesium alloy cabinet

1. Ultra-light: The density of die-cast Mag alloy is 2/3 of alloy and 1/4 of steel, making the box lighter
Steel and aluminum boxes of the same size. Its specific strength and rigidity are also better than steel and aluminum alloy.


2. Ultra-thin: Magnesium alloy is easy to form, and can be made into high-end and thin products, as a box body
Thinner


3. Excellent vibration absorption. For example, at a stress level of 35MPa, the attenuation coefficient of magnesium alloy AZ91D is
25%, aluminum alloy is only 1% at a stress level of 100MPa, magnesium alloys AZ91D, AM60, AS41 are 53%, 72% and 70%, and aluminum alloy A380 is
Only 4%. Magnesium alloy is good for noise reduction.


4. Dimensionally stable
Changes in temperature and time have little effect on the instability of magnesium alloy die-casting products and have high stability.
Accuracy after CNC machining.

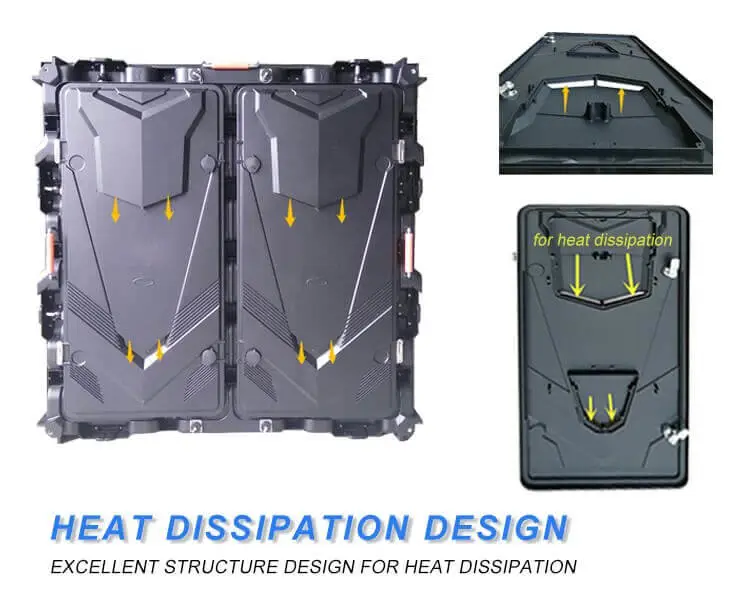

5. Good heat dissipation: Fast heat dissipation-excellent heat dissipation performance to protect modular circuits


6. Excellent heat resistance: Magnesium alloy has better radiation protection and anti-interference than other materials
Capacity to ensure that the screen works well.


7. High versatility: This outdoor led screen p10 can be processed according to the module drawing, this led display screen rental can be used for outdoor and indoor use.

outdoor led screen p10

Technical parameters

Parametersvalues

Pixel pitch

10mm

Panel size

L320mm×H160mm

Physical density

10000dots/sqm

Pixel configuration

1R,1G,1B

Driving method

Constant current

Scan mode

1/2 scan

LED Encapsulation

SMD3535

Displayresolution

32dots×16dots=512dots

Module weight

0.4KG

Module port

HUB75

Module working voltage

DC5V

Module consumption

30W

Cabinet size

960mm×960mm

Cabinet weight

28kg

Cabinet resolution

96dots×96dots

Viewing angle

140°

Option distance

10m-50m

Driving device

16016

Every square meter module

19.53pcs

Maximum power

800W/sqm

Frame Frequency

≥60HZ/S

Refresh frequency

1920HZ/S

Equilibrium brightness

≥7500CD/sqm

Working environment temperature

-10°C~+70°C

Working environment humidity

10%~90%

Display working voltage

AC46~54HZ,220V±15%/110V±15%

Color temperature

8500K-11500K

Gray scale/color

≥16.7M color

Input signal

RF S-Video RGB etc

Mean free error time

>10000

Life

100000

Lamp failure frequency

<0.0001

IPrating

The front IP65





.



Widely used for outdoor and indoor stadium advertising, can be used for common LED display for rental events.
