hd high quality p4 p5 p6 p8 p10 outdoor led display in ali, led video screen , full color led video wall

hd high quality p4 p5 p6 p8 p10 outdoor led display in ali, led video screen , full color led video wall

  • Model NO.: p10 led video wall
  • FOB Price:USD 340.00-360.00
  • Min order:1
  • Accept Min order:Yes
  • Supply Ability:2000 / Week
  • Country of Origin:Yantian Port, Shekou Port, Chiwan Port,Shenzhen
  • Stock Time:Shipped in 10 days after payment Day
  • Place of Origin:CN;GUA
  • Usage:OUTDOOR
  • Display Function:Video
  • Screen Dimension:Customized
  • Model Number:p10 led video wall
  • Brand Name:jinhe
  • Tube Chip Color:FULL COLOR
  • Pixels:10mm

hd high quality  p4 p5 p6 p8 p10 outdoor led display in ali, led video screen , full color led video wall


Product Description



Specification:

Description

Technical  parameter

Unit  module

Module  size

320*160mm

Pixel  pitch

10mm

Pixel  density

10000dots/m2

Pixel  configuration

SMD3in1

Pixel  resolution

W: 32dots*H: 16dots

Cabinet

Dimension

960mm*960mm

Total  weight

30kg

Best  viewing  distance

10-100m

Temperature

Storage:   -35degree~+85degree

Working:   -20degree~+80degree

Remarks:   cabinet size  can  changed,   upon  project  need.

Power

Working  voltage

AC220V/110V± 10%

Average  power  consumption

500W

Max.   Power  consumption

≤ 1000W/sqm

Current

≤ 20mA(single  LED)

Operating  system

WIN98/2000/NT/XP

Control  method

Synchronization or asynchronism

Main  technical  parameter

Driving  device

1/2 scanning

Drive  type

Constant  Current  driver  IC

Refresh  frequency

≥ 400Hz

Grey  scale/colors

256  levels  of  each  color(R/G/B)/16.7M  color

Brightness  of  white  balance

More  than  3500cd/sqm

Brightness  adjustment

256  levels  of  each  color(R/G/B)by  software

Operating  ambient  humidity

10%--95%

Video  signal

PAL/NTSC

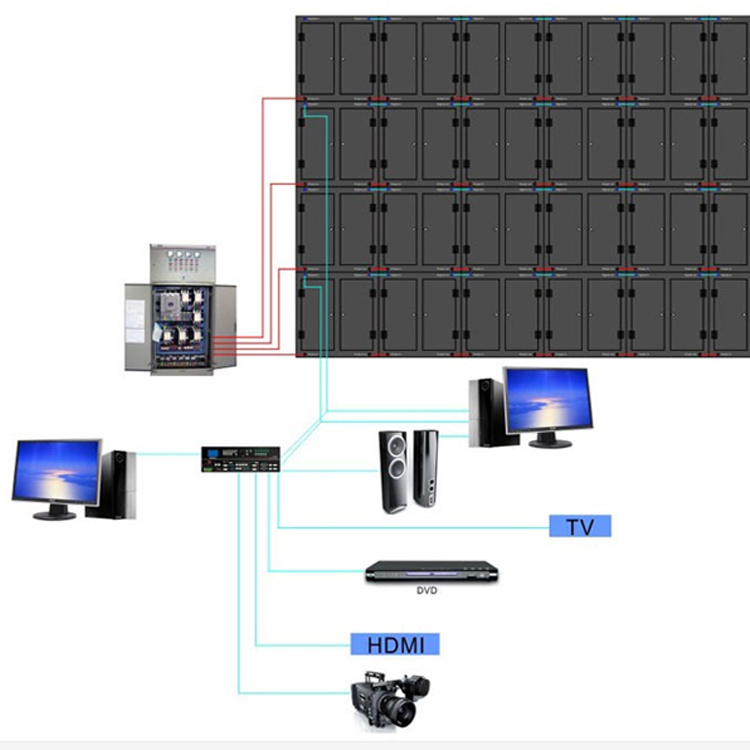

Control  system

DVI  display  card+ full  color  controller  card

MTBF

≥ 10, 000hours

Life  span

≥ 100, 000hours

Flatness

Tolerance  of  interpixel  ≤ 0.3mm

Tolerance  of  modules  clearance≤ 0.6mm

Power  switch

Automatic  switch

Display  mode

960*960mm

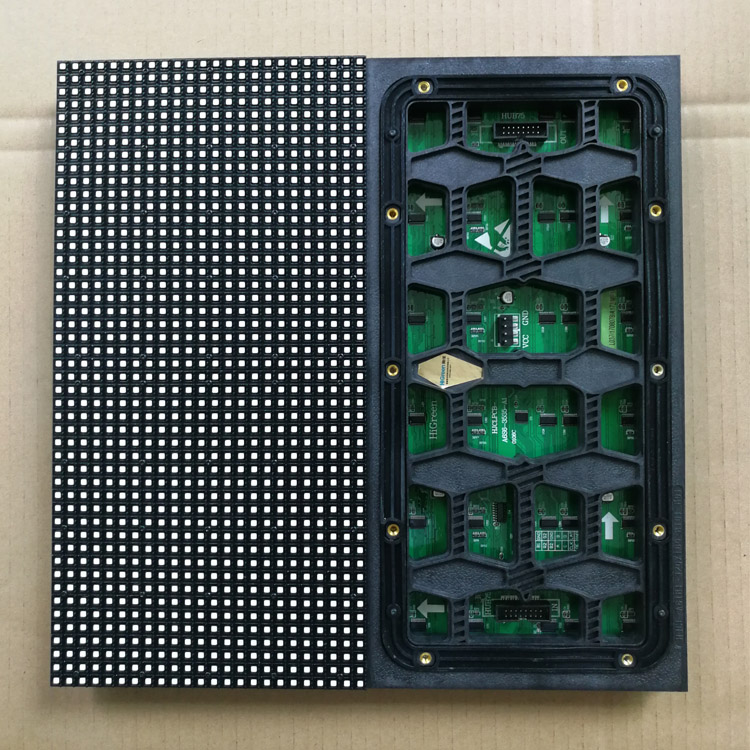

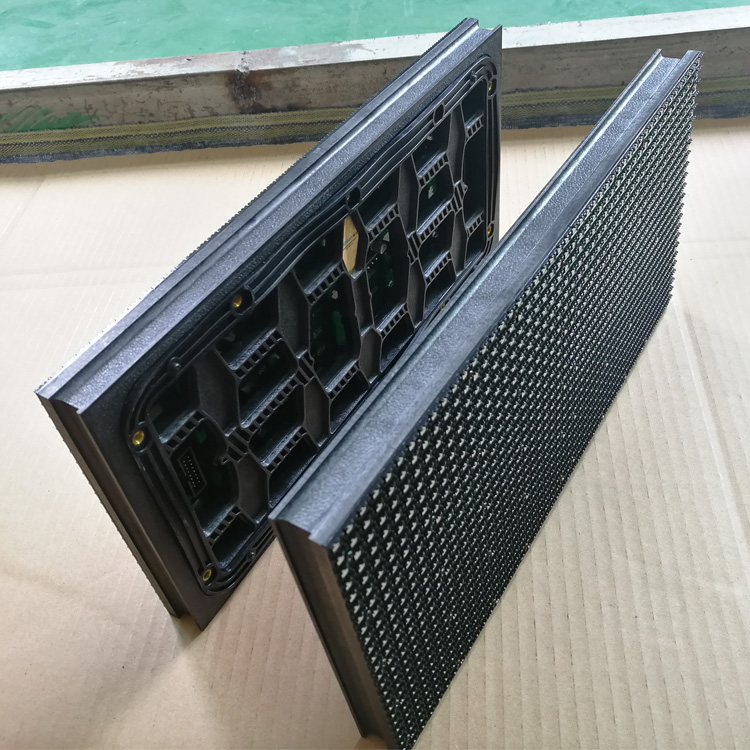

The pictures of our productsp10 outdoor led module (2).jpgp10 outdoor led module (3).jpg

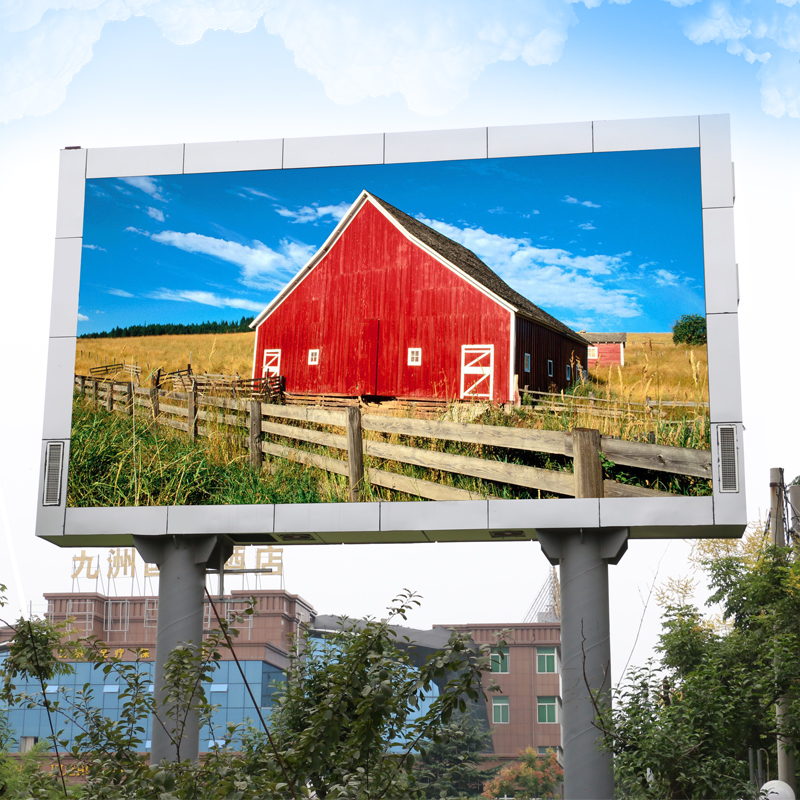

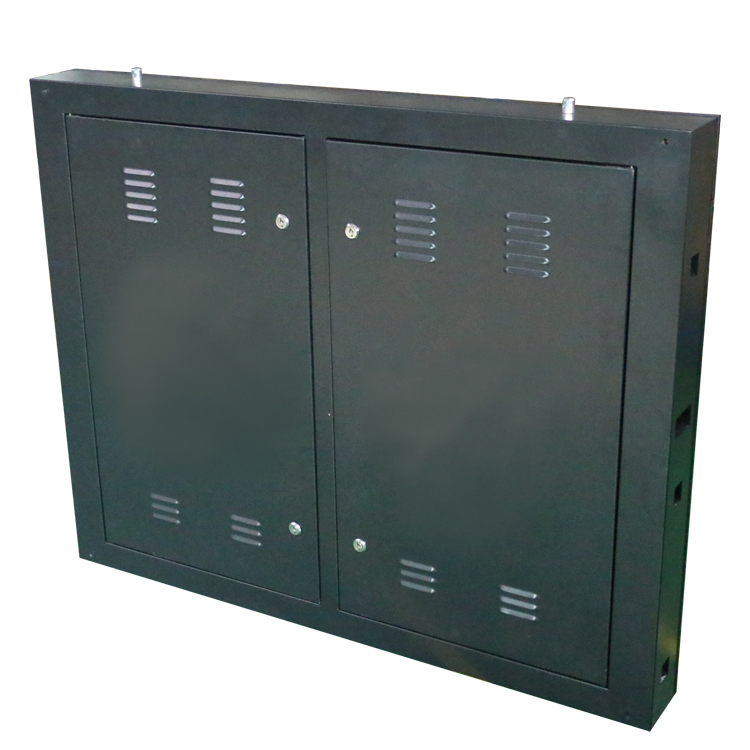

 Waterproof cabinetback of cabinet.jpgp10 led video wall.jpgworking properly.jpgpackaging and shipping.jpgCompany.jpg_09.jpg_10.jpg

Our Services


1.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
2.Our products are exported to foreign countries and regions.
3.Our professional team will constantly communicate with you,to establish a good working relationship.We will contact you by e-mail and phone,always prepared to help you out.



FAQ



1.What is DIP?And what is SMD?
   DIP means double in line package,we call led lamp.SMD means surface mounted device.
2.What is the delivery time of outdoor full color display?

   Usually 20 days after we get the money.
3.Outdoor screen can't use surface mount LED?
   We have outdoor SMD display now.We solve the problem of the brightness and water proof.We          use SMD5050 led chip.Filling the glue on the surface,use IP65 cabinet.
